What is a Servo Motor Actuator and How Does it Work?

Unlocking Precision: A Comprehensive Guide to Servo Motor Actuators

1. Understanding the Core: What is a Servo Motor Actuator?

1.1. Defining the Servo Motor: More Than Just a Motor

When you hear “servo motor,” you might just think of a motor that spins. But it’s way more than that. A servo motor is a special kind of motor that gives you precise control over speed, position, and torque. Instead of just spinning freely like a simple motor, it moves exactly where you want it to—no guesswork, no errors.

In simple terms, a servo motor tells your machine, “Go here, stop, now move there,” over and over again, with high accuracy. This is why servos show up everywhere from robot arms to camera focus lenses.

1.2. The Role of an Actuator: Translating Energy into Motion

An actuator is a device that turns energy (usually electrical) into motion. You can think of it as the muscle of a machine. It pushes, pulls, lifts, or rotates parts so your system can do work.

Servo motors are a type of actuator. They don’t just spin; they move with feedback and control. This makes them perfect for tasks needing exact positioning, smooth motion, and reliable performance.

1.3. The Synergy: Why Servo Motors Excel as Actuators

Why choose a servo motor as an actuator? Because it combines power, precision, and control in one neat package. Thanks to built-in feedback mechanisms like encoders or potentiometers, it knows exactly where it is at all times. This lets it correct mistakes instantly.

Unlike simple motors or even stepper motors, servo motors offer smoother motion, higher torque, and faster speed adjustment. This makes them the go-to choice in precision tasks, whether in robotics, CNC machines, or advanced automation.

2. The Anatomy of Precision: Key Components of a Servo Motor Actuator

Let’s break down what makes a servo motor actuator tick:

2.1. The Motor Core: DC or AC Powerhouse

At its heart is the motor itself, which can be either DC or AC. DC motors are common in smaller applications, offering good speed control. AC servo motors are favored for heavy-duty industrial tasks, with better efficiency and durability.

2.2. Gear Reduction Unit: Enhancing Torque and Control

Because servo motors often need more torque to move heavy loads or overcome resistance, they usually include a gear reduction unit (gearbox). This unit slows down the motor’s speed while boosting torque, giving smoother and stronger motion control.

2.3. The Feedback Sensor: The Eyes and Ears (Encoder or Potentiometer)

Feedback sensors are the secret sauce. They tell the control system the actual position of the motor’s output shaft. The two common types are:

• Encoders: Provide digital signals for very precise position feedback.

• Potentiometers: Measure angle or linear position through resistance changes.

This feedback forms the heart of the closed-loop control system.

2.4. The Control Circuit/Driver: The Brain of the Operation

This electronic controller processes command signals, reads feedback, and then directs the motor’s power supply accordingly. It decides when to speed up, slow down, or stop to hit the target position accurately.

2.5. The Output Shaft: Delivering Mechanical Work

Finally, the movement translates to the output shaft, which connects to whatever needs to move—a robotic arm, a CNC spindle, or a valve. This shaft’s rotation or linear displacement does the real physical work.

3. The Magic of Control: How Servo Motor Actuators Work (The Closed-Loop System)

3.1. The Fundamental Principle: Setpoint vs. Actual Position

Control in servo motors revolves around the difference between the desired position (called the setpoint) and the actual position detected by the feedback sensor.

Imagine you’re steering a car: you want to keep it in the center of the lane (setpoint). If you drift, you adjust the wheel to correct (feedback and control).

3.2. Step-by-Step Operation Explained:

• 3.2.1. Desired Position Input (Command Signal):

You tell the servo where to go, either by a pulse signal or digital data.

• 3.2.2. Control Circuit Processing:

The driver analyzes the command and compares it to the feedback.

• 3.2.3. Motor Activation and Movement:

If needed, the motor spins forward or backward.

• 3.2.4. Real-time Position Feedback:

The encoder or potentiometer sends back the current position.

• 3.2.5. Error Calculation and Correction:

The system calculates any position error and adjusts motor power.

• 3.2.6. Continuous Adjustment for Accuracy:

This loop keeps running until the motor reaches and holds the target precisely.

3.3. Analogy: Steering a Car with Constant Correction

Think of driving down a winding road. You constantly watch the road edges (feedback), make small steering tweaks (control signals), and keep your car safe in the lane. The servo motor’s closed-loop system works just like this, ensuring smooth, accurate positioning in real time.

4. Diverse Applications: Where Servo Motor Actuators Shine

Servo motors find homes in all kinds of critical places thanks to their high precision and reliability.

4.1. Robotics and Automation: The Backbone of Modern Manufacturing

Robots use servo motors to move arms with pinpoint accuracy. Whether assembling cars or electronics, servos control motion, speed, and torque perfectly.

In fact, automotive assembly lines typically use 6-8 servo motors per robot arm for spot welding, dramatically improving cycle time and weld quality.

4.2. CNC Machining: Unparalleled Precision Cutting

CNC machines rely on servo drives for precise tool positioning. This enables smooth cutting, drilling, and shaping of materials with micrometer accuracy.

Servo motors achieve positioning accuracy down to ±1 arc minute rotationally or ±1 micrometer linearly, outperforming many other motor types.

4.3. Packaging and Assembly Lines: Speed and Repeatability

Fast-paced industries use servo motor actuators to automate packaging and assembly with repeatability and minimal downtime. The combination of speed and accuracy ensures high throughput without defects.

4.4. Medical and Aerospace: Critical High-Reliability Systems

Medical imaging devices like CT and MRI scanners depend on linear servo actuators for smooth and precise patient positioning. This improves image quality and patient safety.

In aerospace, servo actuators control flight surfaces and instrumentation, where failure is not an option.

4.5. Consumer Electronics and Hobbyist Projects

From RC planes to DIY robotics, hobbyists use affordable servo motors for motion control. This spans simple tasks like camera gimbals to complex animatronics.

5. Types of Servo Motor Actuators: Matching the Right Solution

Choosing the right servo motor actuator depends on your application needs.

5.1. Rotary vs. Linear Servo Motors

• Rotary servos turn shafts or wheels.

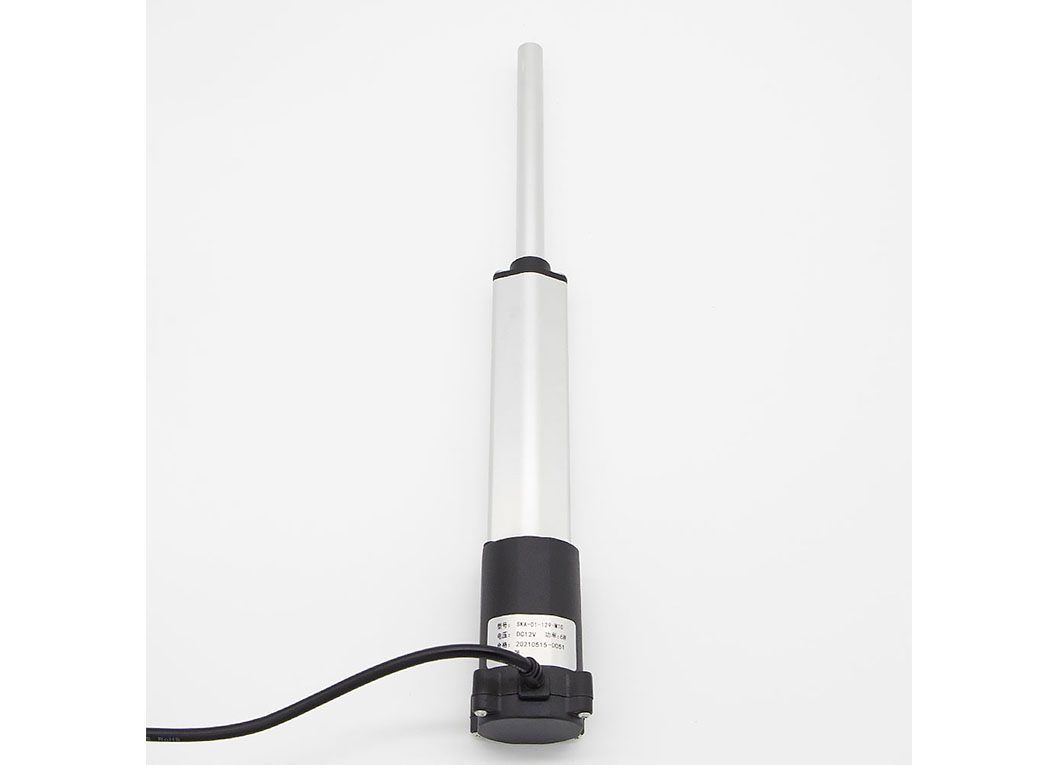

• Linear actuators produce straight-line motion, useful for lifting, pushing, or sliding operations.

We at Jimi Technology specialize in both, including advanced servo linear motors. Check out our industrial linear actuators for heavy-duty needs.

5.2. Brushed vs. Brushless DC Servos

• Brushed DC servos are simpler but wear down brushes over time, limiting life.

• Brushless DC servos offer better efficiency, less maintenance, and quieter operation, making them ideal for demanding applications.

5.3. AC vs. DC Servo Motors

• AC servo motors excel in high-power industrial settings due to rugged design and longevity.

• DC servo motors provide simpler speed and torque control for small to mid-size devices.

5.4. Industrial Grade vs. Hobbyist (RC) Servos

Industrial servos are built for harsh environments, with dustproof and heat-resistant features. RC servos are cost-effective for lightweight, low-stress uses.

Considering your exact requirements will save you time and money. Browse our servo motor product selection for detailed specs.

6. Advantages and Considerations: Why Choose Servo Motor Actuators?

6.1. Key Advantages: Precision, Speed, Torque, and Dynamic Response

Servo motors offer:

• High precision positioning

• Fast, smooth speed control

• Strong torque output

• Dynamic response in milliseconds

This makes them perfect for real-time automation where timing matters.

6.2. Practical Considerations: Cost, Complexity, and Tuning

However, servo systems can be more expensive and complex than simple motors. They require fine-tuning and proper control algorithms like PID control to perform optimally.

We at Jimi Technology provide not just products but full support—from actuator controllers to expert tuning advice.

7. The Future of Motion Control: Evolving Servo Technology

7.1. Integration with Industry 4.0 and IoT

Servo motor actuators are key players in Industry 4.0, linking physical devices with digital monitoring and control systems. IoT integration allows for smarter, data-driven automation.

7.2. Enhanced Energy Efficiency and Miniaturization

Modern servo systems improve energy usage by 10-30%, lowering operational costs and environmental impact. Compact designs also open new possibilities in robotics and portable devices.

Conclusion: The Indispensable Role of Servo Motor Actuators in Advanced Motion Control

Servo motor actuators transform electrical signals into precise, powerful motion with real-time feedback and control. From the robot arms assembling cars to the delicate movement inside a medical scanner, their value is undeniable.

At Jimi Technology, we’re proud to lead the way with high-quality, reliable servo motor actuators, supporting everything from industrial automation to DIY projects. Our expansive product range covers everything—including electric cylinders, linear guides & rails, and mounting brackets—to help you build smarter automated systems with ease.

Ready to experience the power of precision? Explore our products and start turning your automation ideas into reality today.
