The manufacturing industry is undergoing a profound transformation as servo electric cylinders increasingly replace traditional hydraulic systems in servo presses. This shift is driven by the demand for higher precision, energy efficiency, and programmable motion control in applications ranging from automotive component assembly to electronics manufacturing. Unlike conventional hydraulic presses that rely on fluid compression and valve-controlled motion, servo-electric presses use brushless AC servo motors coupled to linear actuators to drive the press fixture, enabling real-time monitoring and adjustment of ram force, speed, and position throughout each process cycle.

This article explores the fundamental reasons behind the widespread adoption of servo electric cylinders in servo presses, examines the critical parameters that engineers must evaluate during specification, and provides concrete examples to illustrate how these parameters influence real-world performance.

The primary reason engineers choose a linear electric actuator over a hydraulic cylinder is the ability to apply complex, real-time motion control. Electric actuators coupled with servo motors and motion control systems provide infinite control over position while monitoring accuracy and repeatability with fewer components and higher consistency than hydraulic systems.

In a servo press, the motion profile can be programmed with extreme flexibility—fast approach speeds during non-critical travel, smooth deceleration as the tooling nears the workpiece, controlled pressing speeds during deformation, and rapid return strokes. This programmability is impossible to achieve with conventional hydraulics without complex valve arrangements.

Servo electric presses consume power only when actively moving or holding a load, unlike hydraulic systems where pumps run continuously to maintain pressure. This translates to energy savings of up to 70% compared to hydraulic alternatives.

The elimination of hydraulic fluid also removes energy losses from fluid friction and heat generation, reducing cooling requirements and extending component life.

Electric cylinders eliminate oil leaks, material contamination, and environmental hazards associated with hydraulic fluids. This is particularly critical in cleanroom environments, food processing, and medical device manufacturing where fluid contamination is unacceptable.

Maintenance demands for electric servo presses are dramatically lower than hydraulic equivalents. Sealed bearing systems in quality electric actuators operate with lifetime lubrication, and there are no filters to change, no hydraulic fluid to analyze and replace, and no pumps requiring periodic rebuilds. Most components operate 10,000–20,000 hours between service needs, compared to 500–2,000 hour intervals common in hydraulic systems.

Modern servo motor technology enables very high continuous force capacity in a compact package. Single actuator options can deliver up to 50 tons (approximately 500 kN) of force, and dual-actuator configurations can double this capacity to 100 tons, enabling electric systems to match the force output of similarly sized hydraulic machines while retaining all the precision advantages.

When specifying a servo electric cylinder for a press application, engineers must carefully evaluate several interdependent parameters. Below are the most important ones, with practical examples.

Definition: The maximum continuous or peak force the electric cylinder can generate, typically measured in kilonewtons (kN) or metric tons.

Why It Matters: The cylinder must deliver sufficient force to achieve the required deformation of the workpiece. Different operations—blanking, bending, deep drawing, or press-fitting—demand varying levels of force depending on material type, thickness, hardness, and desired forming characteristics.

Real-World Example: Consider a 10 kN servo electric cylinder used in precision electronics assembly. With a rated force of approximately 2,248 pounds (10 kN), it is ideal for press-fit operations on PCB components, clamping, and positioning tasks where repeatable force application is critical.

For heavier applications, such as automotive brake kitting presses, a 100 kN (approximately 10-ton) cylinder is employed to handle the substantial loads of metal forming and component assembly.

For large-scale metal forming, the UNI 50 kN heavy-duty servo cylinder delivers 50,000 N of maximum force with a 2,000 mm stroke, making it suitable for industrial pressing operations that previously required hydraulic systems.

Definition: The maximum deviation from a target position when the cylinder returns to the same programmed point repeatedly, typically expressed in millimeters (e.g., ±0.02 mm).

Why It Matters: In precision assembly and forming, even sub-millimeter deviations can result in defective parts, increased scrap rates, or damaged components. High repeatability ensures every cycle produces identical results.

Real-World Example: A small precision high-speed servo electric cylinder achieves a repeat positioning accuracy of ±0.02 mm, making it suitable for automotive engine parts assembly where interference fit accuracy must be maintained to avoid component damage.

In even more demanding applications such as semiconductor equipment or CNC machines, some configurations achieve ±0.01 mm positioning accuracy through closed-loop servo control with encoder feedback.

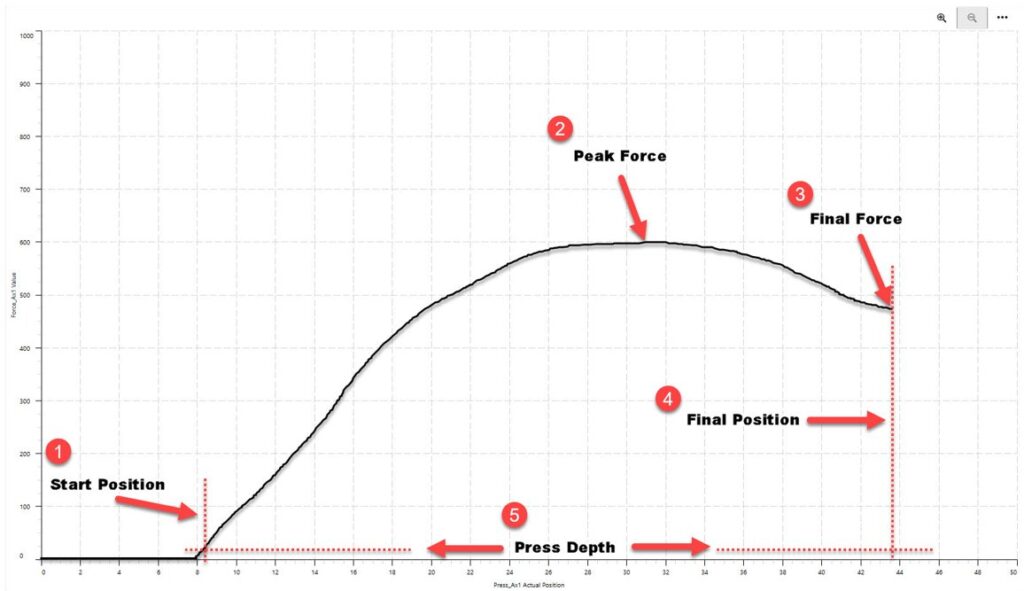

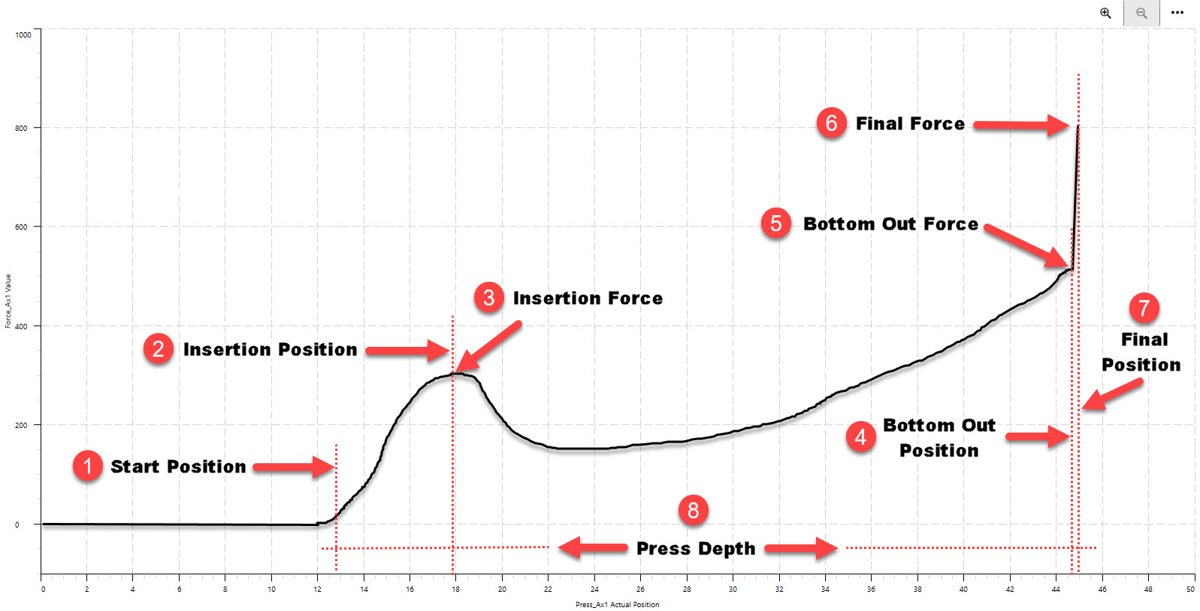

The following image illustrates a typical force-position curve monitored during a press-fit operation, where precise position tracking is essential for quality validation:

Definition: The highest linear velocity the cylinder can achieve, typically in mm/s, and the rate at which it can reach that velocity.

Why It Matters: High-speed operation enables shorter cycle times and higher production rates. However, speed must be balanced against force requirements—higher speeds generally reduce available thrust due to the mechanical advantage of the screw mechanism.

Real-World Example: A precision servo electric cylinder can achieve maximum speeds of 150 mm/s with a 1,500W servo motor, suitable for medium-speed assembly operations.

For high-speed material handling in electronic production lines, speeds of 500 mm/s with 0.1-second response time are achievable, dramatically improving cycle efficiency.

The UNI 50 kN cylinder offers a maximum speed of 66 mm/s with a 10 mm screw lead, or 33 mm/s with a 20 mm lead when configured for higher force output. This trade-off between speed and force is a fundamental design consideration.

For an automotive brake kitting press using a 6310 screw specification, the rated speed ranges from 36 mm/s to 83 mm/s depending on the gear reduction ratio (3:1 to 7:1), demonstrating how gearbox selection directly impacts the speed-force relationship.

Definition: The maximum linear travel distance of the actuator rod, measured in millimeters.

Why It Matters: The stroke must accommodate the tallest workpiece, tooling clearance, and any required overtravel for safety or process requirements.

Real-World Example: Servo electric cylinders for press applications offer customizable strokes ranging from 50 mm to 2,000 mm or more. The UNI 50 kN heavy-duty cylinder provides a maximum stroke of 2,000 mm, suitable for deep drawing operations or large component assembly.

For compact electronics assembly, a 50–150 mm stroke may be sufficient, while metal forming operations may require 500 mm or more.

Definition: The linear distance the nut travels per revolution of the screw, measured in mm. A smaller lead provides higher force but lower speed; a larger lead provides higher speed but lower force.

Why It Matters: The screw lead is a critical parameter that determines the force-speed trade-off. It is often paired with a gearbox to achieve the desired output characteristics.

Real-World Example: The UNI 50 kN cylinder uses a 16 mm diameter ball screw with selectable leads of 10 mm or 20 mm. With a 10 mm lead, the maximum force is 50,000 N at 66 mm/s. With a 20 mm lead, the maximum force drops to 25,000 N but speed increases to 33 mm/s—wait, actually the inverse is true: a larger lead typically increases speed but reduces force. This demonstrates the importance of selecting the correct lead for the application.

For the automotive brake kitting press, screw specifications of 6310 (63 mm outer diameter, 10 mm lead) are used with reduction ratios of 3:1, 5:1, or 7:1 to achieve rated thrusts ranging from 59.35 kN to 100 kN.

Definition: Duty cycle refers to the percentage of time the actuator is actively operating versus resting. Continuous force is the sustained force the cylinder can deliver without overheating, while peak force is the maximum force available for short durations.

Why It Matters: Underestimating duty cycle requirements can lead to overheating, premature wear, and system failure. Press applications often involve intermittent high-force events (the actual pressing) followed by low-force travel (approach and return).

Real-World Example: When retrofitting a hydraulic press to electric, engineers must determine the true peak and continuous working force of the existing hydraulic cylinder by recording values during operation. Often, electric replacements are oversized because designers assume full supply pressure is always applied. Even a pressure estimation within 15% of the actual force provides a reasonable sizing range.

Definition: The compatibility of the electric cylinder with industrial communication protocols (EtherCAT, PROFINET, Modbus) and the availability of real-time feedback from encoders, load cells, or force sensors.

Why It Matters: Modern servo presses rely on closed-loop control to monitor and adjust force, speed, and position in real time. Seamless integration with factory automation systems enables data capture for process analytics, quality traceability, and predictive maintenance.

Real-World Example: The 110 Series heavy-duty servo electric cylinder from Jimmy Technology supports EtherCAT, PROFINET, and Modbus protocols, enabling seamless integration into Industry 4.0 manufacturing environments. Programmable motion profiles allow operators to customize ram speed, position, and force for different products, enabling rapid changeovers.

The following image shows a typical servo press station using an electric cylinder, demonstrating the compact integration of the actuator, control system, and safety guarding:

Definition: The electrical power required to operate the cylinder, measured in kW, and the total cost of ownership including maintenance and energy.

Why It Matters: While servo electric presses have higher initial capital costs than hydraulic presses, their lower operating costs—due to reduced energy consumption and maintenance—deliver superior return on investment over time.

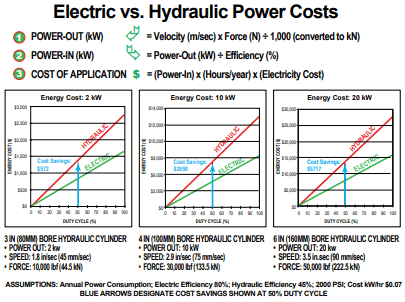

Real-World Example: The following comparison chart illustrates the energy cost savings of electric actuators versus hydraulic cylinders across different duty cycles:

A 150-ton servo hydraulic press uses a 7.5 kW to 15 kW servo motor depending on configuration, compared to continuously running hydraulic pumps that consume power even during idle periods.

Over a year of operation, the energy savings can amount to thousands of dollars per press, particularly in high-volume production environments.

The widespread adoption of servo electric cylinders in servo presses is driven by a compelling combination of precision, energy efficiency, programmability, and reduced environmental impact. While hydraulic systems still dominate the highest-force applications (hundreds of tons), the vast majority of industrial pressing operations—blanking, bending, forming, press-fitting, and assembly—fall well within the force capabilities of modern electric actuators, which can deliver up to 50 tons from a single unit and 100 tons in dual configurations.

The critical parameters for specifying a servo electric cylinder—rated force, repeat positioning accuracy, maximum speed, stroke length, screw lead, duty cycle, control integration, and energy consumption—must be carefully matched to the specific application requirements. Real-world examples from automotive brake assembly (100 kN), precision electronics (±0.02 mm accuracy), and high-volume metal forming (66 mm/s at 50 kN) demonstrate how these parameters translate into tangible performance outcomes.

As manufacturing continues its shift toward Industry 4.0, smart factories, and sustainable production, the servo linear motor and electric cylinder will only grow in importance, offering manufacturers the precision, flexibility, and data connectivity required to remain competitive in a rapidly evolving global market.
