Compact Tubular Electromechanical Linear Actuators — Precision Motion in a Pen-Sized Package
In an era where equipment miniaturization and space optimization drive design decisions across virtually every industry, our Compact Tubular Electromechanical Linear Actuators deliver powerful linear motion within an elegantly slender, pen-type form factor. Engineered for applications where installation space is at a premium yet performance cannot be compromised, these precision electromechanical linear actuators combine high-force density, whisper-quiet operation, and exceptional reliability in a package that redefines what compact automation can achieve.

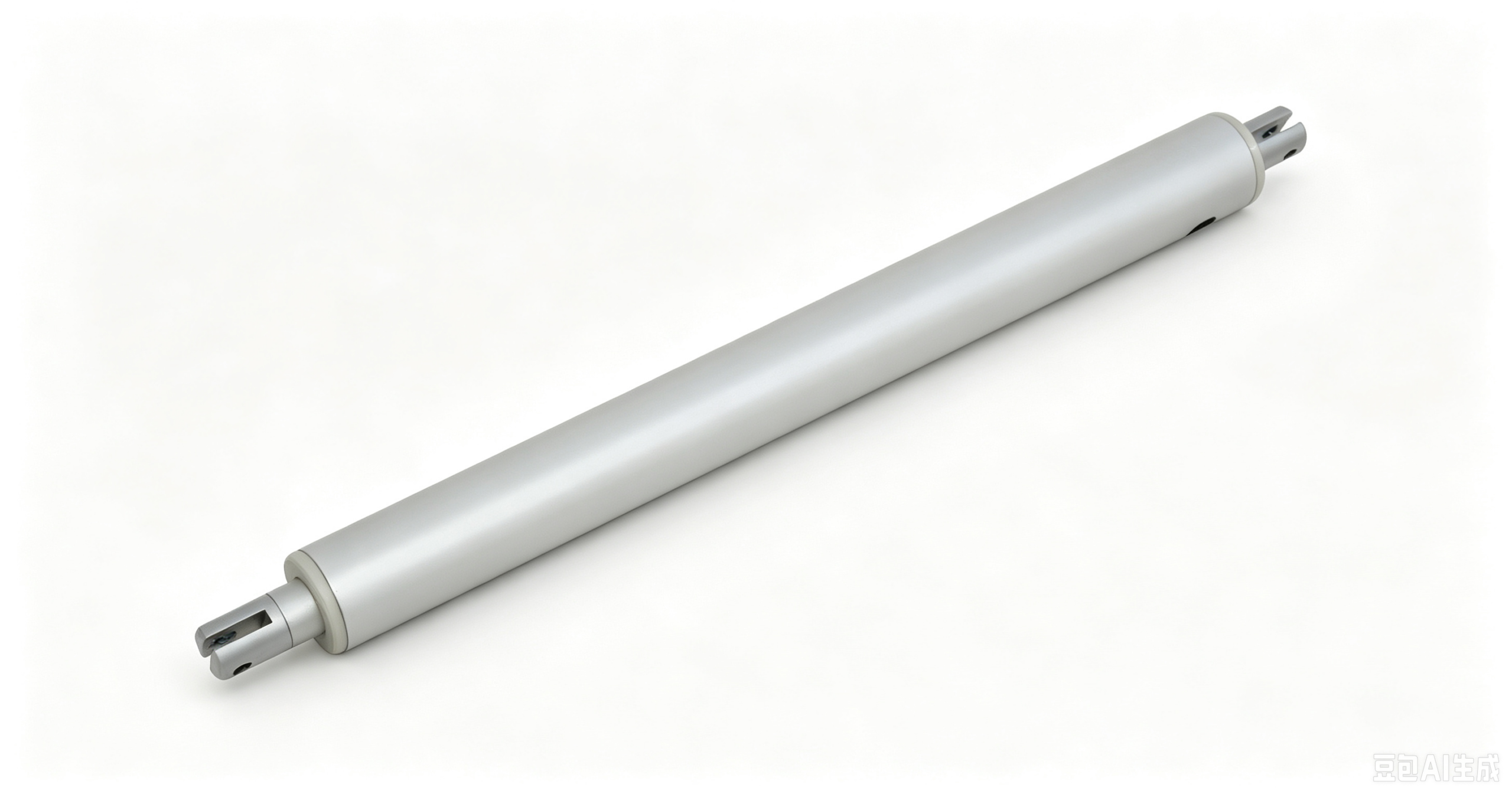

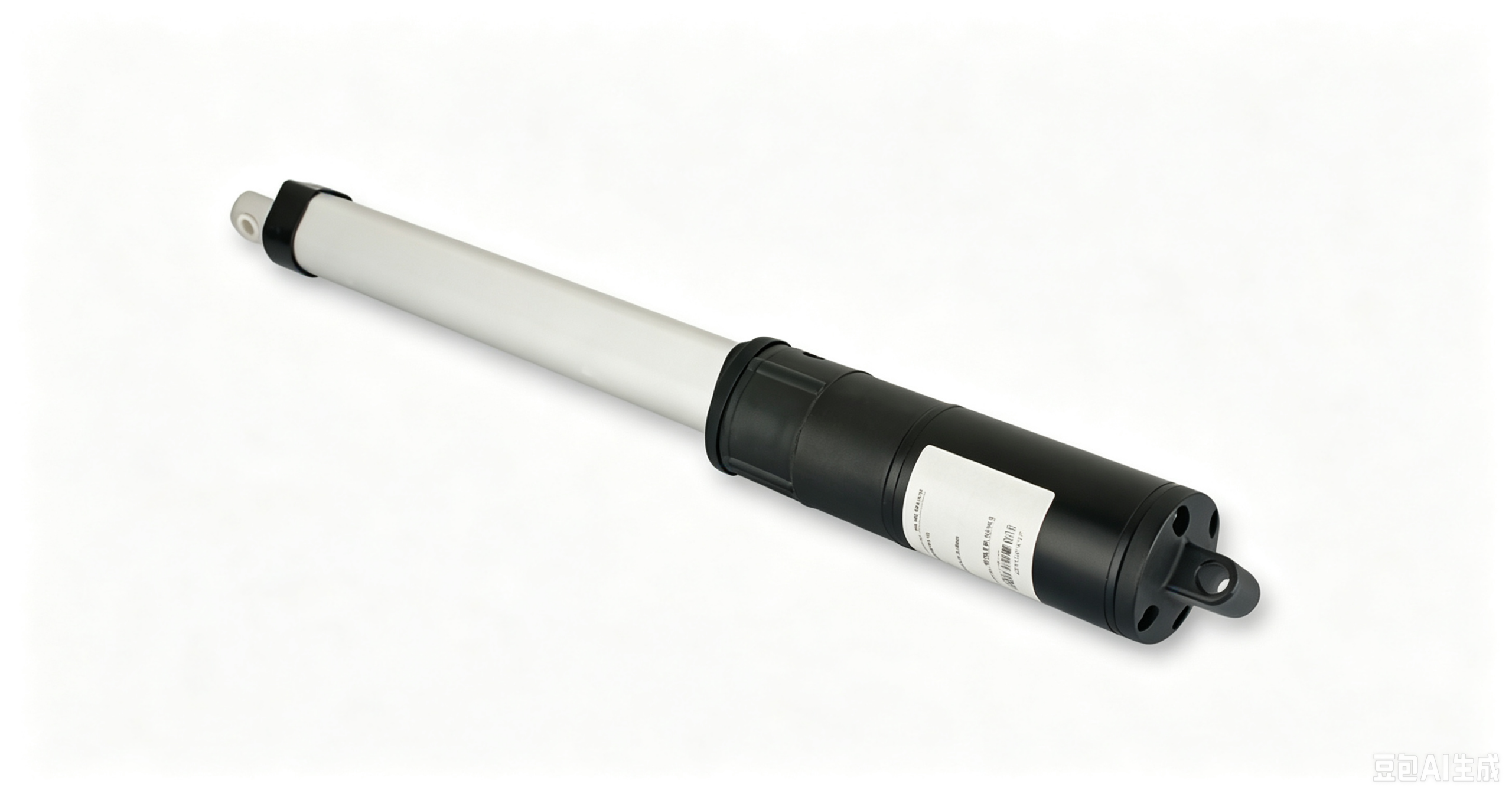

The defining characteristic of these electromechanical linear actuators is their remarkably slim, cylindrical profile. Unlike traditional bulky linear motion devices, our pen-type actuators feature a fully enclosed tubular housing typically measuring between 20 mm and 45 mm in diameter, allowing them to integrate seamlessly into tight mechanical envelopes where conventional actuators simply cannot fit. Despite their compact dimensions, these units generate impressive thrust forces ranging from 500 N to over 3,000 N, depending on the selected gear ratio and motor configuration. The internal architecture utilizes a high-efficiency brushed or brushless DC motor driving a precision ball screw or lead screw mechanism, all contained within a sealed aluminum or stainless steel tube that provides excellent structural rigidity while minimizing overall weight.
What truly distinguishes these electromechanical linear actuators is their versatility across an extraordinarily diverse range of applications. In the medical and healthcare sector, they power hospital beds, patient lifts, dental chairs, and motorized wheelchairs, where smooth, quiet, and reliable motion directly impacts patient comfort and caregiver efficiency. Their compact footprint makes them ideal for integration into diagnostic equipment, automated laboratory instruments, and pharmaceutical dispensing systems where precision positioning within confined instrument housings is absolutely critical. Within the modern office and home furniture industry, these actuators enable ergonomic sit-stand desks, adjustable monitor arms, recliner mechanisms, and smart kitchen appliances, bringing effortless electric adjustment to consumer products without the noise or bulk of larger drive systems.
Automotive and transportation applications represent another major deployment area for these electromechanical linear actuators. They are extensively used in seat adjustment mechanisms, headrest positioning, trunk and hood release systems, and throttle control assemblies, where their ability to withstand vibration, temperature extremes, and continuous cycling while maintaining precise control makes them indispensable. In industrial automation, these compact actuators excel in conveyor tensioning systems, small-part pressing and clamping operations, valve control, and packaging machinery adjustments, proving that small size does not preclude industrial-grade durability and performance.
The engineering excellence behind these electromechanical linear actuators extends beyond mere mechanical design. Advanced models incorporate integrated Hall effect sensors, limit switches, or potentiometer feedback, enabling accurate position monitoring and closed-loop control without requiring external sensors that consume additional space. The brushless motor variants offer extended operational lifespans exceeding 20,000 cycles, minimal electromagnetic interference, and variable speed control through standard PWM signals. For noise-sensitive environments, specially engineered gear trains and damping systems reduce operational sound levels to below 45 dB—quieter than a normal conversation—making these actuators virtually unnoticeable in residential, medical, and office settings.
Customization flexibility ensures these electromechanical linear actuators can be precisely tailored to your specific project requirements. Standard stroke lengths range from 50 mm to 600 mm, with custom lengths available for specialized applications. Operating voltages span 12V DC, 24V DC, and 36V DC configurations to match existing power systems, while optional IP54 or IP65 ingress protection ratings provide defense against dust and moisture in challenging environments. Mounting options include clevis ends, threaded adapters, and custom brackets, facilitating straightforward mechanical integration regardless of your assembly constraints.
By choosing our tubular electromechanical linear actuators, designers and engineers gain access to a motion solution that eliminates the maintenance headaches, fluid leaks, and noise pollution associated with pneumatic and hydraulic alternatives. These all-electric devices require no compressors, pumps, or valves—just a simple power connection and control signal—to deliver clean, precise, and repeatable linear motion. Whether you are developing the next generation of smart medical devices, upgrading ergonomic workplace furniture, or optimizing compact industrial machinery, our pen-type actuators provide the ideal balance of size, strength, and sophistication.
Contact our engineering team today to explore how these compact yet powerful electromechanical linear actuators can solve your most challenging space-constrained motion requirements. We offer rapid prototyping, application-specific customization, and comprehensive technical support to ensure your project achieves optimal performance from the first cycle.
You can go to watch EXAMPLE VIDEOS on YouTube. It can help you to understand how is solar tracker working, and how is the linear motor applying to soar tracker. Otherwise you can go to my YOUTUBE CHANNEL to study all the constructions of single axis solar trackers and dual axis solar trackers. If you have any questions, you can contact us on website.
Features
- Maximum thrust 70KG
- Aluminum alloy tubes, tested for load of 150KG
- Maximum speed reaches 20mm/s when idling, 12mm/s when full load
- planetary gear driving, designed for operation for 30,000 times
- Inbuilt stroke switch
- Meet IP54 standard, suitable for indoor and outdoor application
- Compatible with 24V /12V electric motor
- Overload protection
- Maintenance-free
PARAMETERS FOR MODEL SELECTION
STANDARD INSTALLATION SIZE
HOW TO SELECT MODEL?
REMARKS:
b. Non-standard installation size b. Whether contains potential meter or other sensor
b. Whether contains non-standard connector d. Holes at two ends are of
non-standard size
e. Whether rotation installation and angle needed
f. If any above situation or other problem be found, please consult with our technical staff
