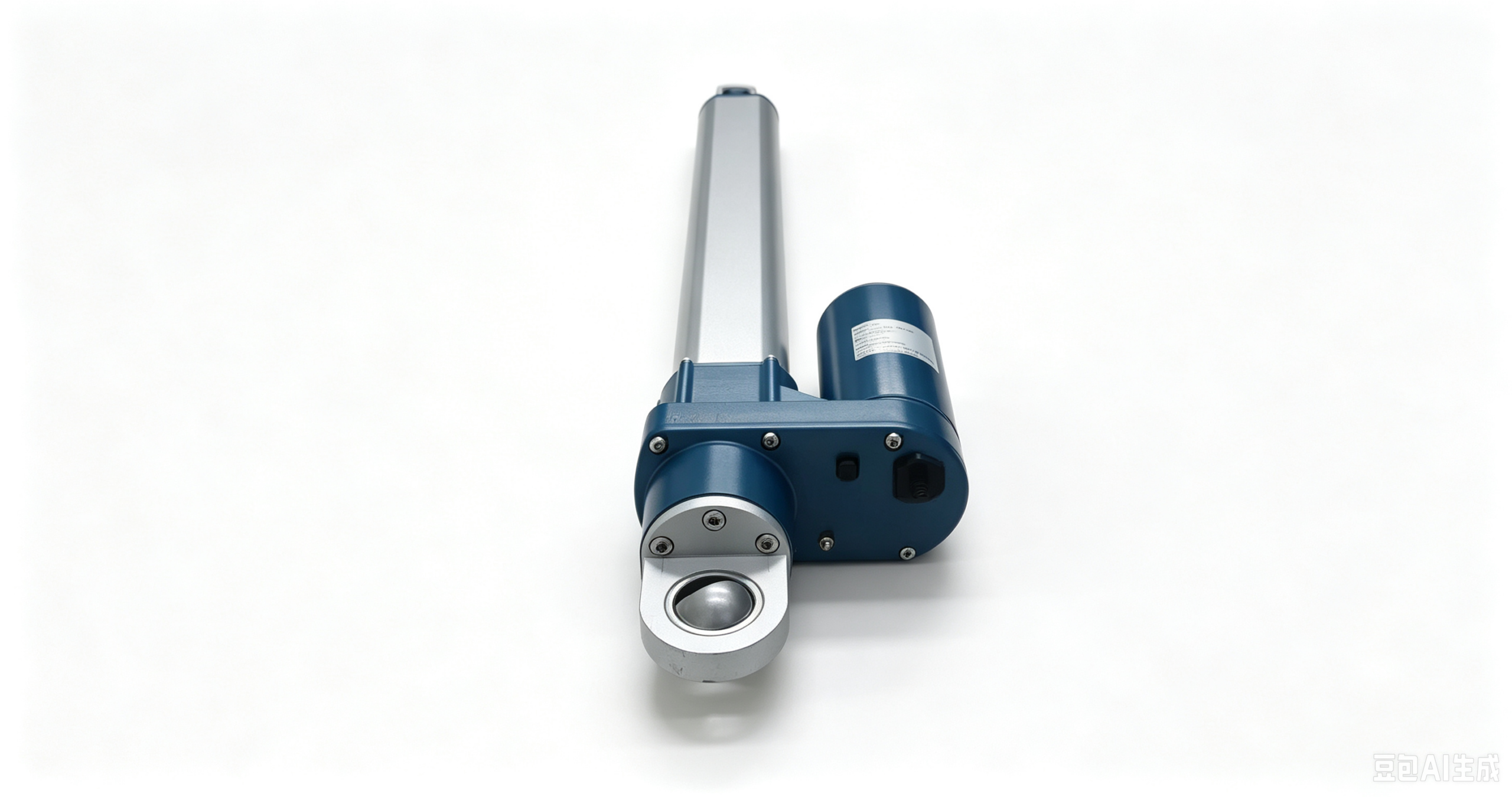

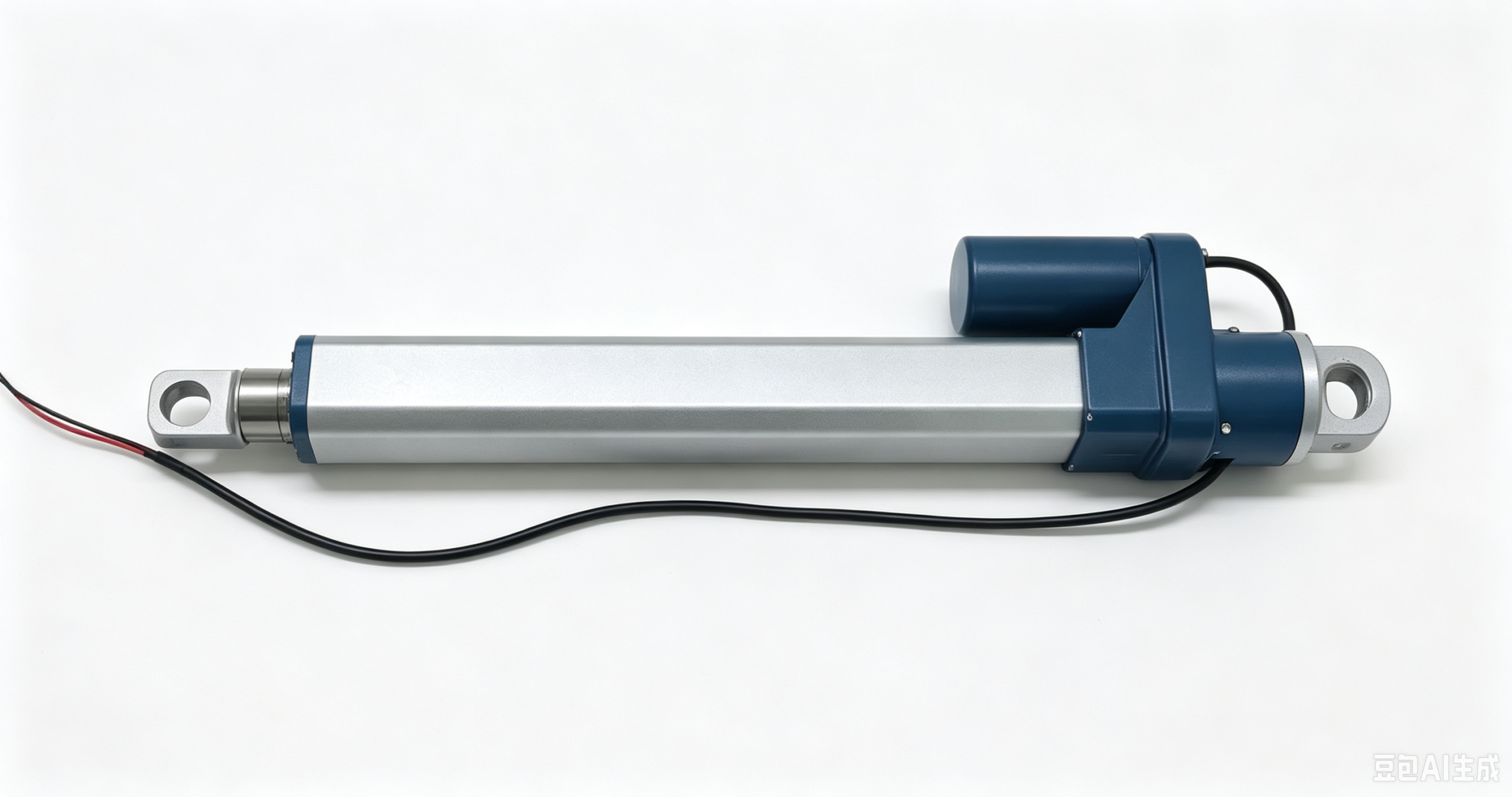

35000N Heavy-Duty Electric Linear Actuator

Our 35000N Heavy-Duty Electric Linear Actuator is engineered for the most demanding industrial automation applications. As a high-performance linear motor actuator, it delivers an exceptional 35,000 Newtons of thrust force—equivalent to approximately 3,500 kgf—making it the ideal replacement for hydraulic and pneumatic systems in heavy-load environments.
Built with a robust all-steel construction and precision ball-screw or roller-screw drive mechanisms, this industrial-grade electric linear actuator ensures reliable, maintenance-free operation even under continuous heavy-duty cycles. The integrated brushless DC motor and advanced position feedback system provide smooth, accurate motion control with stroke lengths customizable up to 1,500 mm and positioning repeatability within ±0.5 mm.
Designed for harsh industrial conditions, the actuator features IP65 or higher protection ratings, corrosion-resistant coatings, and overload protection. It is widely deployed in steel manufacturing, mining equipment, agricultural machinery, automated assembly lines, and solar tracking systems where high force and precise linear motion are critical.
By converting from traditional fluid power to this energy-efficient linear motor actuator, facilities can significantly reduce operating costs, eliminate leak risks, and achieve quieter, cleaner automation. Contact us today to configure the 35,000N electric linear actuator solution tailored to your specific application requirements.

Apply industrial linear actuators to Agricultural, construction, mining, and highway machinery equipment. Such as golf carts, garden vehicles, tractors, theme parks, satellite dishes, solar energy tracking system, it can apply to. Such as ships, offshore drilling platform special vehicles, garbage compression devices, it can apply to.

You can go to watch EXAMPLE VIDEOS on YouTube. It can help you to understand how is solar tracker working, and how is the industrial linear actuators applying to soar tracker. Otherwise you can go to my YOUTUBE CHANNEL to study all the constructions of single axis solar trackers and dual axis solar trackers. If you have any questions, you can contact us on website.

Features

  • Maximum thrust 35000N
  • Inner extension tube is made by stainless steel, which is more stronge
  • Maximum speed reaches 10mm/s on non-load
  • Maximum static load reaches 60000N
  • Inbuilt potential meter, adjustable stroke switch
  • Meet IP67 standard, suitable for outdoor application
  • Using 24V/12V DC  motor
  • With clutch system, and overload protection alternative
  • Maintenance-free

STANDARD INSTALLATION SIZE

Standard setting up dimensions：Stroke: 100~300mm    L=S+290mm    Stroke: 300~600mm    L=S+320mm

Stroke: 600~1000mm   L=S+350mm

separately

Installing hole angle in the drawing is 90° (standard)

blank

Installation size of product without stroke switch, but with clutch:
Stroke: 102，153，203，305，457，610mm
According length of line A in the drawing are 302, 353, 404, 506, 735, and 888mm separately
Installing hole angle in the drawing is 90° (standard)

blank

HOW TO SELECT MODEL?

blank

REMARKS:

e. Non-standard installation size b. Whether contains potential meter or other sensor
b. Whether contains non-standard connector d. Holes at two ends are of
non-standard size
e. Whether rotation installation and angle needed
f. If any above situation or other problem be found, please consult with our technical staff
